Everlating productivity
The E-CUBE 8 Series is an indispensable partner for your practice.
Your patients will enjoy an individualized service and improved efficiency in their healthcare.
This ultrasound is a smart and reliable product that ensures high performance with outstanding image quality and multi-purpose usability.
The E-Cube 8 series is your most rational choice.

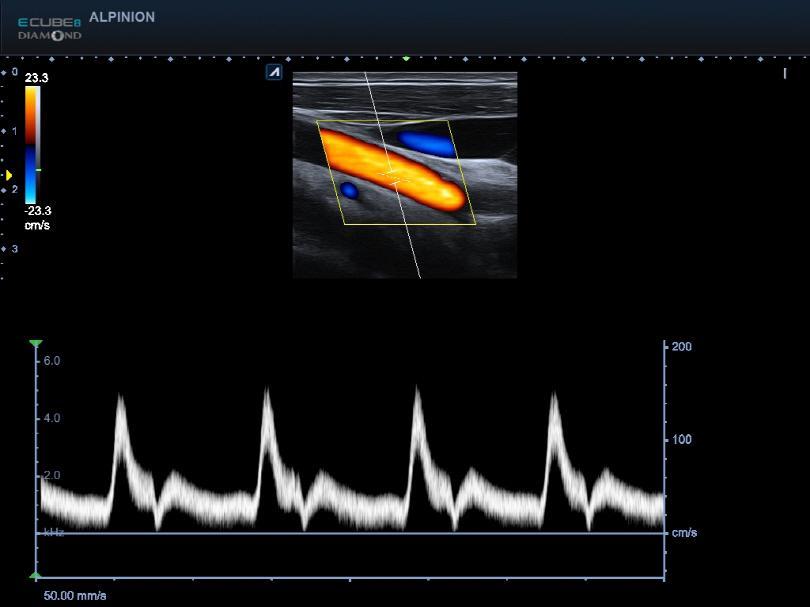

Clinical Image
Excellent imaging performance
High-Resolution Transducers
Single crystal convex
SC1-4H / SC1-4HS / SC1-6H
High-frequency linear
L8-17H / IO8-17
High-Performance System
Flagship model-grade platform
- High-end hardware and software platforms from the top model produced by Alpinion.
- With the dual pulser, clear and accurate Doppler data will be displayed, while maintaining a sharp 2D image.
Frame rate increasing technology
- High pulse repetition frequency (PRF) results in an enhanced image resolution.
- Quickly optimizes 2D, Color Doppler, and Spectral Doppler images.
Simple yet valuable design
Designed for user environments
SSD for quick exam preparation
- High-end hardware, including a SSD.
- Fast boot-up time allows a rapid start to the patient’s examination.
Battery that frees you from space restrictions
- The compact exterior design with the built-in battery allow access to limited spaces and no need for power outlets.
Articulating monitor & adjustable control panel
- The monitor is horizontally and vertically adjustable.
- Up/down adjustable control panel.
Enhancement of diagnostic flow
Volume Master™
- Alpinion’s 3D/4D features that enable you to obtain reproducible planes and better anatomical views.
- Multi Planar Rendering (MPR), Cubic View, and Multi Slice View (MSV) providing the clinical benefits of CT or MRI.
Auto IMT
- The thickness of the carotid intima media will be measured automatically and displayed on the screen.
Stress Echo
- The optimized examination workflow allows the user to perform a Stress Echocardiogram more quickly and conveniently.
Needle Vision™ Plus
- Using Beam Steering technology, this feature is useful in showing the shape and orientation of the needle.
- The needle may be viewed more clearly by adjusting the beam steering angle in three steps.
Design & Ergonomics
- The 1,920×1,080 pixel high-resolution monitor delivers sharp and clear ultrasound images.
- No image distortions and a wider field of view with the IPS (In-Plane Switching) technology.
- The monitor is horizontally and vertically adjustable
- May move the monitor up to 90 mm vertically
- May rotate it up to +/- 135°horizontally, or tilt up to +10°/-90°
- A highly sensitive capacitive touchscreen with an intuitive UI design
- Improved convenience and speed
- Warms and maintains the Ultrasound gel temperature
- The temperature can be adjusted in three steps according to examination circumstances
- 4 Light weight and compact connectors
- Effortlessly disconnect or reconnect the transducers, even in tight spaces
- Control panel keys are arranged in the most efficient and intuitive manner
- Frequently used functions may be assigned to the 3 user keys
- A keyboard on top of the control panel, making it easy to access
- Reducing unnecessary tasks and shortening the examination time
Transducers
SC1-4H
High density single crystal convex transducer (1-4MHz)
Application
Abdomen, EM, Gynecology, Obstetrics
SC1-6H
High density single crystal convex transducer (1-6MHz)
Application
Abdomen, EM, Gynecology, Obstetrics
SC1-4HS
High density single crystal convex transducer (1-4MHz)
Application
Abdomen, EM, Gynecology, Obstetrics
C5-8NT
Microconvex (5-8MHz)
Application
Abdomen, EM, Cardiac, Pediatric
C1-6CT
C-Architecture (PowerView™) Convex transducer (1-6MHz)
Application
Abdomen, EM, Gynecology, Obstetrics
L8-17H
High density linear transducer(8-17MHz)
Application
Breast, EM, MSK, Vascular, Small Parts
L3-12H
High density linear transducer (3-12MHz)
Application
Breast, EM, MSK, Vascular, Small Parts
L3-12HWD
High density wide footprint linear transducer (3-12MHz)
Application
Breast, EM, MSK, Vascular, Small Parts, Appendix
L3-12T
Linear transducer (3-12MHz)
Application
Breast, EM, MSK, Vascular, Small Parts, Appendix
IO8-17T
High frequency hockey stick (8-17MHz)
Application
Small Parts, MSK
P1-5CT
C-Architecture (PowerView™) phased array transducer (1-5MHz)
Application
Abdomen, Cardiac, EM, TCD
SP3-8T
Single crystal phased array transducer (3-8MHz)
Application
Abdomen, Cardiac, EM, Pediatric
EV3-10T
Endocavity transducer (3-10MHz)
Application
GYN, OB, Fetal Echo, Urology, EM
EC3-10T
Endocavity transducer (3-10MHz)
Application
GYN, OB, Fetal Echo, Urology, EM
VC1-6T
Volume Convex (1-6MHz)
Application
Abdomen, OB, GYN, EM
VE3-10H
High density volume endocavity transducer (3-10MHz)
Application
GYN, OB, Urology, EM
CW5.0
Pencil type transducer (5.0MHz)
Application
Cardiac
CW2.0
Pencil type transducer (2.0MHz)
Application
Cardiac
