Bringing excellence to daily care
The E-CUBE 12 is a great partner for the management of medical environments.
The E-CUBE 12 helps medical practitioners make quick and accurate diagnoses.
Moreover, with its simple and user-friendly features, they can provide more patients with medical services in the same amount of time. The E-CUBE 12 gives medical practitioners more time to focus on their roles and to provide patients a more comfortable and positive healthcare experience. By using the E-CUBE 12, medical practitioners can earn a deeper trust from their patients and ultimately advance their clinic’s success.
Clinical Image
![Breast nodule with L3-12HWD](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_01.jpg)
![Breast nodule](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_02.jpg)
![Breast with L3-12HWD](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_03.jpg)
![Kidney](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_04.jpg)
![Liver and kidney](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_05.jpg)
![Liver with Color](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_06.jpg)
![Renal vessel](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_07.jpg)

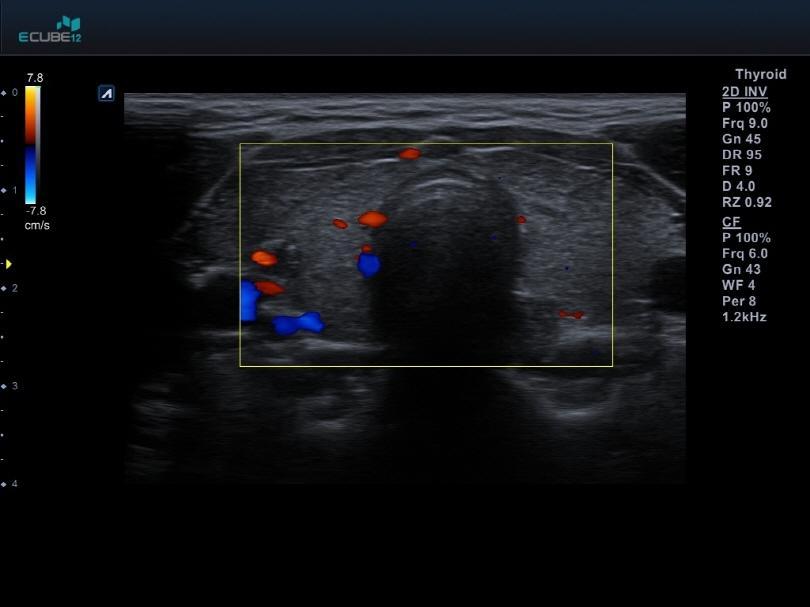

![Thyroid with Color](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_08.jpg)
![Thyroid_01](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_09.jpg)
![Thyroid_02](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_10.jpg)
![Heart 4ch view with Color](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_11.jpg)
![Heart 4ch view](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_12.jpg)
![Heart PLAX](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_13.jpg)
![Heart PSAX](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_14.jpg)
![Heart TDI PW](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_15.jpg)
![Strain_01](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_16.jpg)
![Strain_02](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_17.jpg)
![Stress Echo](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_18.jpg)
![Auto IMT](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_19.jpg)
![Carotid artery IMT](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_20.jpg)
![Carotid artery in Color and PW](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_21.jpg)
![Carotid artery in Color](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_22.jpg)
![Jugular vein with Color and PW](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_23.jpg)
![Jugular vein with Color](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_24.jpg)
![Elbow](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_25.jpg)
![Knee](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_26.jpg)
![Shoulder_01](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_27.jpg)
![Shoulder_02](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_28.jpg)
![35wk fetal face with Live HQ™](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_29.jpg)

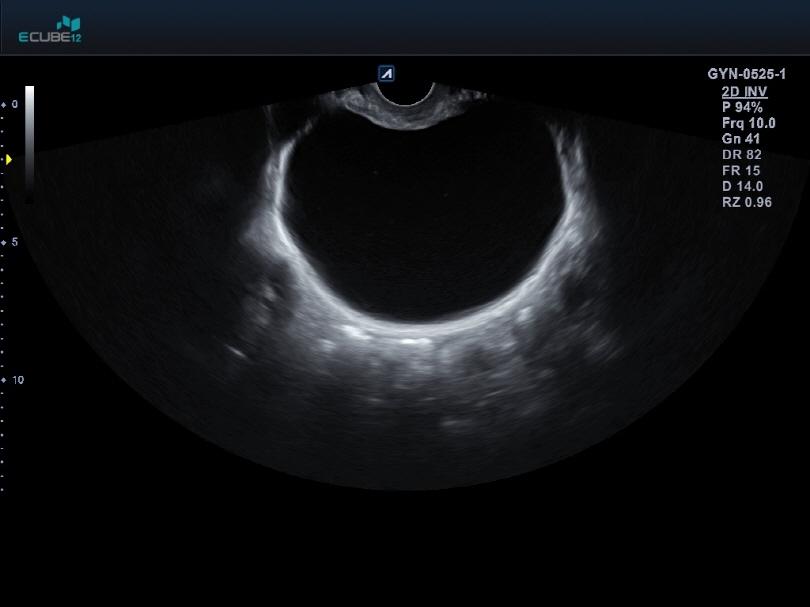

![Bladder](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_30.jpg)
![Fetal brain MSV](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_31.jpg)
![Fetal face in MPR](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_32.jpg)
![Fetal heart_01](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_33.jpg)
![Fetal heart_02](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_34.jpg)
![prd-view-slide-txt](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_35.jpg)
![Uterus longitudinal view](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_36.jpg)
![Uterus transverse view](https://integramedicalsystems.com/wp-content/uploads/2023/05/prd_ultra_12_slide_img_37.jpg)
Confidence to care
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_01.jpg)
Optimal Imaging Suite™ Plus
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_02.jpg)
Xpeed™
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_03.jpg)
High performance transducers
Simplified to be your best
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_04.jpg)
Power Preset
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_05.jpg)
Quick and user-friendly control panel
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_06.jpg)
SSD for quick examination preparation
Enhancement of Clinical Capabilities
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_07.jpg)
CUBE Strain™
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_08.jpg)
Needle Vision™ Plus
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_09.jpg)
Elastography
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_10.jpg)
Volume Master™
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/prd_ultra_12_img_11.jpg)
Live HQ
Everlasting Suit - Ergonomic & Valuable Design
![](https://integramedicalsystems.com/wp-content/uploads/2023/04/ec12.png)
- The 21.5-inch, FHD (1,920×1,080) LED monitor
- With the use of IPS (In-Plane Switching) technology
- 90 mm up and down, swivel +/- 86° and tilt +10°/-90°
- The temperature can be adjusted in three steps
- Patients can relax and undergo an examination more comfortably
- An intuitive UI design
- A high-sensitivity, high-resolution 10.4-inch touchscreen
- Long lasting color and protection against fading and cracking
- The height and angle of the control panel can be adjusted easily and conveniently
- A sliding keyboard may be used, as needed
- Compact and light transducer connectors
- The system is slim with a small footprint
- Scan patients more comfortably, and disconnect or reconnect the transducers easily
Transducers
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000001.png)
SC1-6H
High density single crystal convex transducer (1-6MHz)
Application
Abdomen, EM, Gynecology, Obstetrics
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000002.jpg)
SC1-4HS
High density single crystal convex transducer (1-4MHz)
Application
Abdomen, EM, Gynecology, Obstetrics
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000006-768x768.png)
C5-8NT
Microconvex (5-8MHz)
Application
Abdomen, EM, Cardiac, Pediatric
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000031-768x768.jpg)
C1-6CT
C-Architecture (PowerView™) Convex transducer (1-6MHz)
Application
Abdomen, EM, Gynecology, Obstetrics
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000008-1-768x768.jpg)
L8-17X
Extreme-high density linear transducer (8-17MHz)
Application
Breast, EM, MSK, Vascular, Small Parts
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000009-768x768.png)
L8-17H
High density linear transducer(8-17MHz)
Application
Breast, EM, MSK, Vascular, Small Parts
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000012.png)
L3-12H
High density linear transducer (3-12MHz)
Application
Breast, EM, MSK, Vascular, Small Parts
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000014-1-768x768.jpg)
L3-12HWD
High density wide footprint linear transducer (3-12MHz)
Application
Breast, EM, MSK, Vascular, Small Parts, Appendix
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000016-768x768.png)
L3-8H
High density low frequency linear transducer (3-8MHz)
Application
Breast, EM, MSK, Vascular, Small Parts
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000017-768x768.png)
IO3-12
Intraoral transducer (3-12MHz)
Application
EM , Small Parts
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000019-768x768.png)
IO8-17T
High frequency hockey stick (8-17MHz)
Application
Small Parts, MSK
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000013-2-768x768.jpg)
L3-12X
Extreme-high density linear transducer (3-12MHz)
Application
Breast, EM, MSK, Vascular, Small Parts
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000021-1-768x768.jpg)
P1-5CT
C-Architecture (PowerView™) phased array transducer (1-5MHz)
Application
Abdomen, Cardiac, EM, TCD
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000024-1-768x768.jpg)
SP3-8T
Single crystal phased array transducer (3-8MHz)
Application
Abdomen, Cardiac, EM, Pediatric
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000025-768x768.png)
EV3-10X
Extremely high density, wide angle FOV up to 230°(3-10MHz)
Application
GYN, OB, Urology, EM
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000026-768x768.png)
EV3-10H
High density endocavity transducer (3-10MHz)
Application
GYN, OB, Urology, EM
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000028-768x768.png)
EC3-10X
Extremely high density, wide angle FOV up to 230° (3-10MHz)
Application
GYN, OB, Urology, EM
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1605141876000000040.jpg)
EC3-10H
High density endocavity transducer (3-10MHz)
Application
GYN, OB, Urology, EM
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000007.png)
SVC1-6H
High density single crystal volume convex transducer (1-6MHz)
Application
Abdomen, OB, GYN, EM
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612321750000000011-768x768.png)
VE3-10H
High density volume endocavity transducer (3-10MHz)
Application
GYN, OB, Urology, EM
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612847654000000030-768x768.png)
CW5.0
Pencil type transducer (5.0MHz)
Application
Cardiac
![](https://integramedicalsystems.com/wp-content/uploads/2023/05/1612321750000000002-768x768.png)
CW2.0
Pencil type transducer (2.0MHz)
Application
Cardiac
